IC11B Maytag Amana Ice Maker Kit P1328003W

IC11B

More Views

IC11B Maytag Amana Ice Maker Kit P1328003W

IC11B

Retail Price: $218.39

Your Price: $159.99

In Stock

Genuine Whirlpool Refrigerator Ice Maker Parts for brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Coldspot - Kenmore (106 Series) & (596 Series) Refrigerators.
OR
Overview

Fits Amana - Kenmore 596 & Maytag Refrigerators.
' FREE SHIPPING THIS ITEM '

Description

Amana / Maytag IC11B Ice Maker Kit

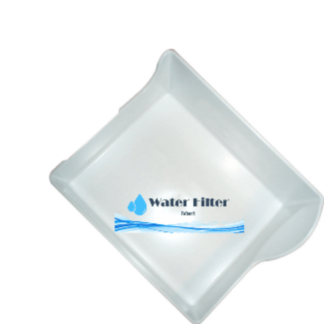

Includes: W10190978 Modular Ice Maker, Cover, Mounting Bracket, 4-Pin Male Flat Plug Wire Harness, Large Style Wire Shut-Off Arm, 67003753 Water Valve, 67001255 Ice Bucket and Installation Parts.
For Amana, Maytag, Kenmore (596. Series) Bottom Freezer Models.

Models

The IC11B Is Found For The Following Models.

Other Info

Installing the W10190978 Ice Maker:

  • First you need to remove the three mounting screws that hold ice maker to freezer wall.
  • Then disconnect the electrical wire harness from the freezer wall & remove ice maker unit out of freezer.
  • You should be all set to install the new ice maker.
  • Plug in the new unit and re install the mounting screws to freezer wall.
  • Now it’s all done and ready to freeze.

Installing the 67003753 Ice Maker Water Valve:

  • Pull the refrigerator away from the wall far enough so you can access the water line connection and work on the back of the refrigerator. Place a towel under the water valve assembly to catch water.
  • Unplug the refrigerator or shut off the circuit breaker for the refrigerator.
  • Turn off the water supply to the refrigerator.
  • Remove the screws that secure the service panel on the back of the refrigerator and remove the panel.
  • Remove the screw(s) that secures the mounting bracket to the frame of the refrigerator.
  • Pull water valve out of refrigerator cavity.
  • Disconnect the supply water line.
  • Disconnect wire harness at solenoid of valve.
  • Cut ice maker water tube close to outlet port where it connects to old valve.
  • Remove old water valve.
  • Now to install new valve.
  • Insert water tube as far as possible into outlet port of new ice maker water valve.
  • Tug on the water tube to make sure it's seated properly.
  • Attach wire harness lead to the solenoid coil.
  • Insert water valve into refrigerator cavity and attach mounting bracket screw(s) to frame of refrigerator.
  • Next connect the supply water line. Tighten nut snugly.
  • Turn water on and check for leaks.
  • When all is good, attach back cover and slide refrigerator backinto place.
  • Now it’s all done and ready to make some sparkling ice so you can relax and enjoy your favorite cold beverage.

Follow these simple steps of installation and you can really do it yourself without having to pay for a mechanic for such a simple task.

Reviews (1)
  1. Complete IC11B Refrigerator Ice Maker Kit Review by Admin
    Overall Shopping Experience

    This IC11B ice maker kit fits like the original ice maker in fridges manufactured by brands like Kenmore, Amana, Maytag, Whirlpool and Kitchenaid to name a few with freezers on the bottom and do not have water thru the door feature. Along with the w10190978 modular style ice maker, the kit also includes 4-pin male flat plug wire harness, cover, mounting bracket, 67003753 water valve, 67001255 ice bucket, large style shut-off arm wire, installation parts and instructions. This product can be easily installed by the tech novices without spending money on the technician. Comes well packaged in a cardboard box to ensure safe delivery. (Posted on 8/31/2015)
