Compatible Fit for W10190935 Module

Compatible Fit W10190935 Module
Hover over image to zoom
Price: $29.95
Product ID : UNIV-Module
Manufacturer: Universal Parts

Purchase

Description

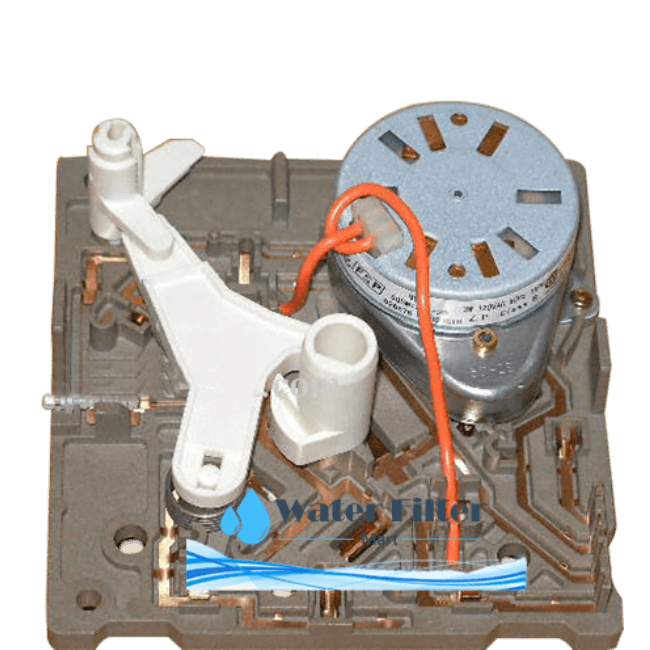

Universal 628366 Ice Maker Module with Motor W10190935
Used For All Domestic Modular Style Ice Makers.
Replaces Part Numbers: 628366, R0167202, R0167202, R0167203, R0167203, RO167203 , W10122536, 14210064, 483042, 483101, 483105, 626676, 626680, 626684, 627797, 627801, 627811, 627816, 628134, 628135, 628247, 628258, 628302, 628305, 628332, 628342, 628357, 628358, 628398, 628399, 8240, AP4359694, PS2341896.

Installing the Universal Brand W10190935 Module & Motor:

  • Remove ice maker from freezer.
  • Place ice maker on a table or workbench.
  • Remove ice maker front cover (if applicable).
  • Remove wire shut off arm from ice maker.
  • Remove electrical plug from ice maker (depress tab and pull out plug).
  • Use phillips screwdriver to remove 3 screws from module.
  • Pull module directly from ice maker.
  • Line up slotted end of rake so as to line up with new module as you insert new module to ice maker.
  • Then install 3 phillips screws that hold module to ice maker.
  • Next follow rest of steps in reverse order to finish the replacement.
  • Now it’s all done and ready to freeze. Enjoy.

Follow such simple steps of installation and you can really do it yourself. Now sit back and enjoy your ice.
